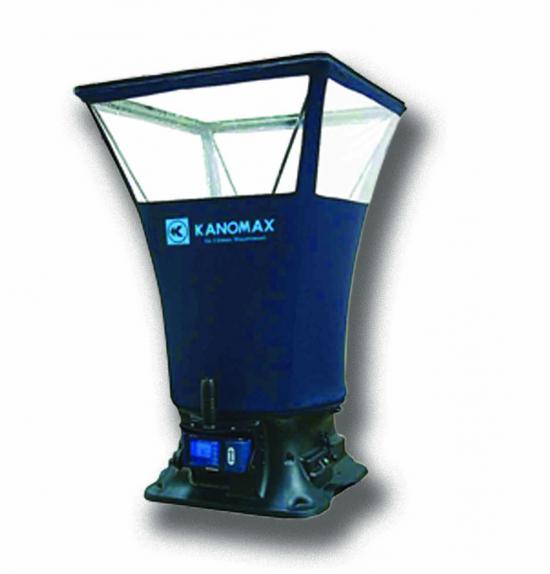

Kanomax Model 6710 / 6715 - TABmaster Capture Hood

The new Kanomax TABmasterTM is the perfect tool for accurate supply and return airflow measurements. Interchangeable hoods make it a snap to sample the air for any duct size. The unit is lightweight and easy to handle.The full color screen can be tilted so it’s always at the optimal viewing angle regardless of height.

Coming Soon: NEW Model 6715 with many advanced features. The first feature is the addition of a removable handheld micromanometer with Bluetooth® wireless capability. Using the base meter that goes with the TABmaster it’s now possible to take airflow and pressure readings with a pitot tube (airflow range of 0.15 to 40 m/s +/- 3%; Pressure measurements from -2500 to 2500 Pa +/- 0.25%, with high resolution) or the optional velocity matrix (range of 0.15 to 15 m/s with a 3% accuracy). The matrix is a cross shaped grid, similar to the one in the base of the capture hood, that makes it possible to take face velocity readings and average velocity readings at multiple points simultaneously. The Bluetooth® feature can send data to your smartphone or any Android-based device. When used in conjunction with our wheeled, extendable stand this allows a contractor to sample air at a ceiling duct without the need to get on a ladder to read the meter.


Applications
HVAC testing, adjusting and balancing
Air volumetric flow measurements through registers, diffusers and grilles
Direct readout at supply and return airflow
Air velocity measurement in the duct
Check filter fouling by measuring differential pressure

Features
23 to 2500 cfm (40 to 4250 m3/h) range
Simultaneously measures and displays air flow, temperature and humidity
Displays the direction of the airflow as well as the velocity
Store up to 3,000 Measurements
Advanced storage feature allows you to store multiple measurements under a single ID#

Benefits
Easy one-person setup and use
Five hood sizes make it easy to pick one that fits your duct
Built-in back pressure compensation ensures accuracy for large volumetric flow measurements
Competitive economic price with professional-grade features



Specifications
 Airflow Measuring Range
23 to 2500 CFM (40 to 4250 m3/h)
 Accuracy 3% of measuring +/- 10 m3/h
 Resolution
1 m3/h
 Temperature Measuring Range
32 to 122°F (0 to 50°C)
 Accuracy +/- 1°F (0 to 50°C)
 Resolution 0.1°C
 Humidity Measuring Range 0-100% RH
 Accuracy +/- 3.0 %RH
 Resolution 0.1 %RH
Standard Hood Dimensions
610x610mm
Optional Hood Dimensions
610x1220mm, 305x1220mm, 500x500mm, 915x915mm, 915x610mm
 Power Supply
4 x AA batteries or AC Adapter
 Weight & Dimensions
7.9 lbs (3.6 kg), Main Body: 3.4" x 7.4" x 1.6"
